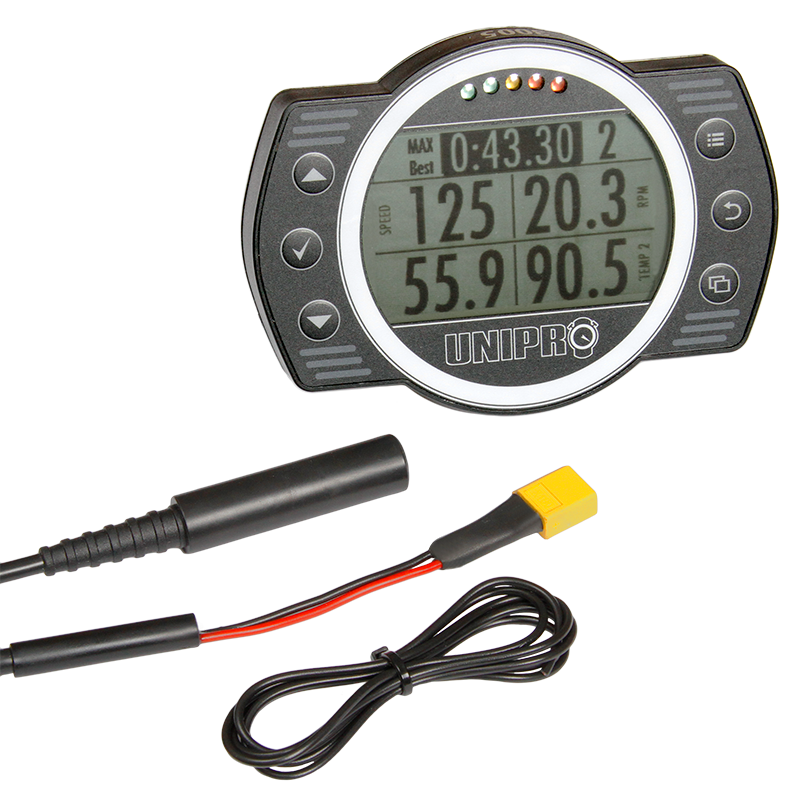

UniGo 3005 Basic kit

---

Lap memory: 200

---

Log memory: 120 minutes

---

Channels logged: Lap time, position, RPM, 2 x temperature, speed, gear, voltage. Logged at 10 Hz

---

Sensor inputs: RPM, 2 x temperature*, speed*, trigger, external power

---

GPS: No

---

Trigger: Magnet, infrared, active loop

---

Split times: Magnets

---

Real-time-clock: No

---

Expandable: No

---

Display type: 256 x 160 pixels, 16 gray scales

---

Backlight: No

---

LED warnings: 5 high-brightness, fully programmable

---

Data upload: USB high-speed via optional USB cable

---

Casing: Lightweight plastic

---

Waterproof: Yes

---

Dimensions: 131.5 x 94.0 x 18.0 mm (5.18" x 3.70" x 0.71")

---

* Shared connector: Optional cable splitter needed

UniGo 3005 is both a Laptimer and a Data Logger. It means that all data are stored in the Laptimer at 10 times per second. It makes it possible to transfer the results to a PC or MAC for further analyzing. The included analyzer program will give you the complete overview together with the possibility to compare results between drivers, training sessions and heats.

The kit contains the Laptimer with free choice of receiver (magnet, loop or IR), RPM wire, power cable and a battery holder for six AA batteries. It gives you the possibility to measure lap times and engine revolutions.
