Arrow X6.2 - 30/32mm Tubing 50mm Axle SEPTEMBER 24 UPDATE EDITION
Arrow X6.2 - 30/32mm Tubing 50mm Axle SEPTEMBER 24 UPDATE EDITION is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Arrow X6.2 - 30/32mm Tubing 50mm Axle SEPTEMBER 24 UPDATE EDITION
Description
Description
Arrow X6.2 - 30/32mm Tubing 50mm Axle SEPTEMBER 24 UPDATE EDITION
|
UPDATED DESIGN AVAILABLE NOW After months of testing and development we have made significant improvements in both the drivability and outright speed of our 6.2 chassis. The design also includes the 3rd bearing housing as standard, although the flange and bearing will need to be purchased separately if desired. This is as used to win TaG 125 at AKC Round 5. Order now for delivery in approx. 7 days |
The X6.2 chassis has been updated to the latest spec from our proven development karts. We are constantly developing and refining our karts, and the 'standard' product sold to the public is our best available test kart at this moment, so you get the fastest available product.
Note: All previous X6.2 hardware and parts fit directly to the updated chassis design. The latest X6.2 chassis features a 3 bearing rear axle design, but only 2 bearings are fitted as standard when sold.
The 6.2 is latest Arrow Karts evolution of the X6 range. In our testing we have found this kart to offer braking and corner entry stability without compromising exit speed, while still performing on rubbered-up tracks. It also has improved grip in high speed cornering.
Designed for the full range of classes using LeCont tyres:
Junior - KA2, KA3
Senior - KA3, TaG Restricted, TaG, X30
FEATURES:
- 30/32mm chassis tubing
- 1037mm wheelbase
- DPE’s unique billet adjustable heel rest system, ensuring optimum comfort for all size drivers

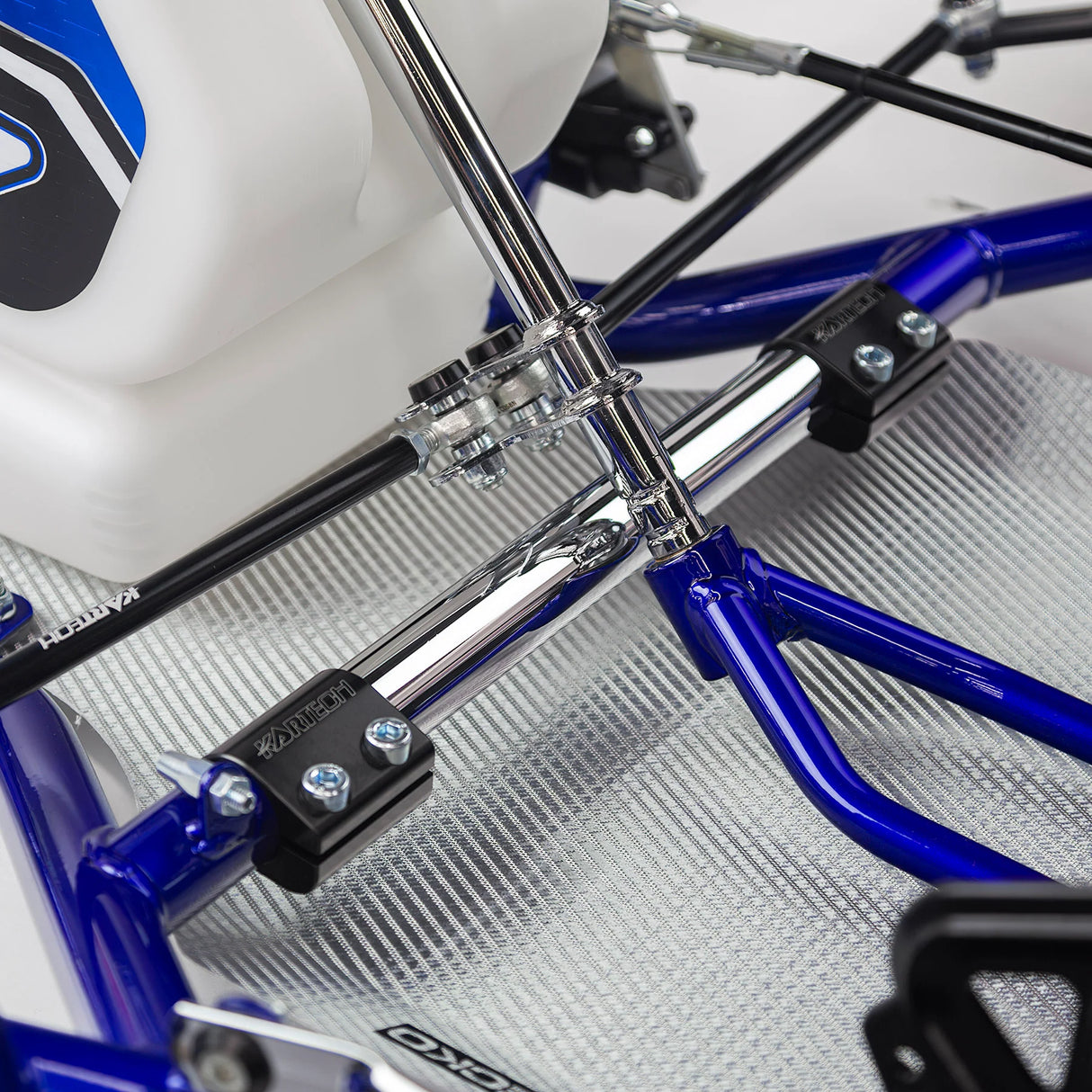

- Removable/adjustable front torsion bar available in four stiffnesses:
Soft (supplied standard), Nylon Soft, Medium, Hard - Unique design camber/caster adjuster system, and adjustable front ride height
- Wider range of Ackerman adjustment

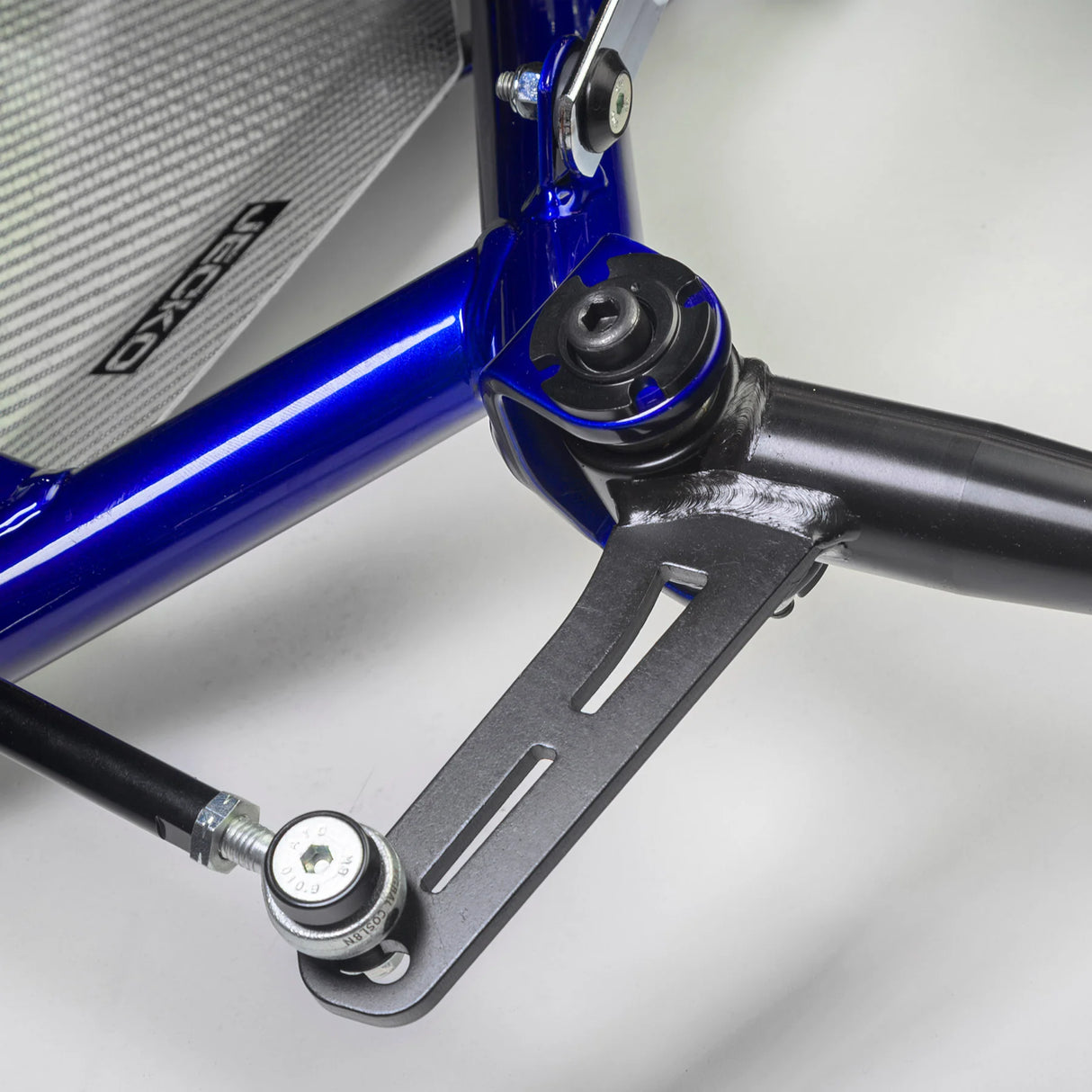

- 25mm stub axles with 10mm kingpin and 80mm magnesium wheel hubs
- Douglas SE black wheels
- KG 507/508 bodywork with Arrow graphics kit

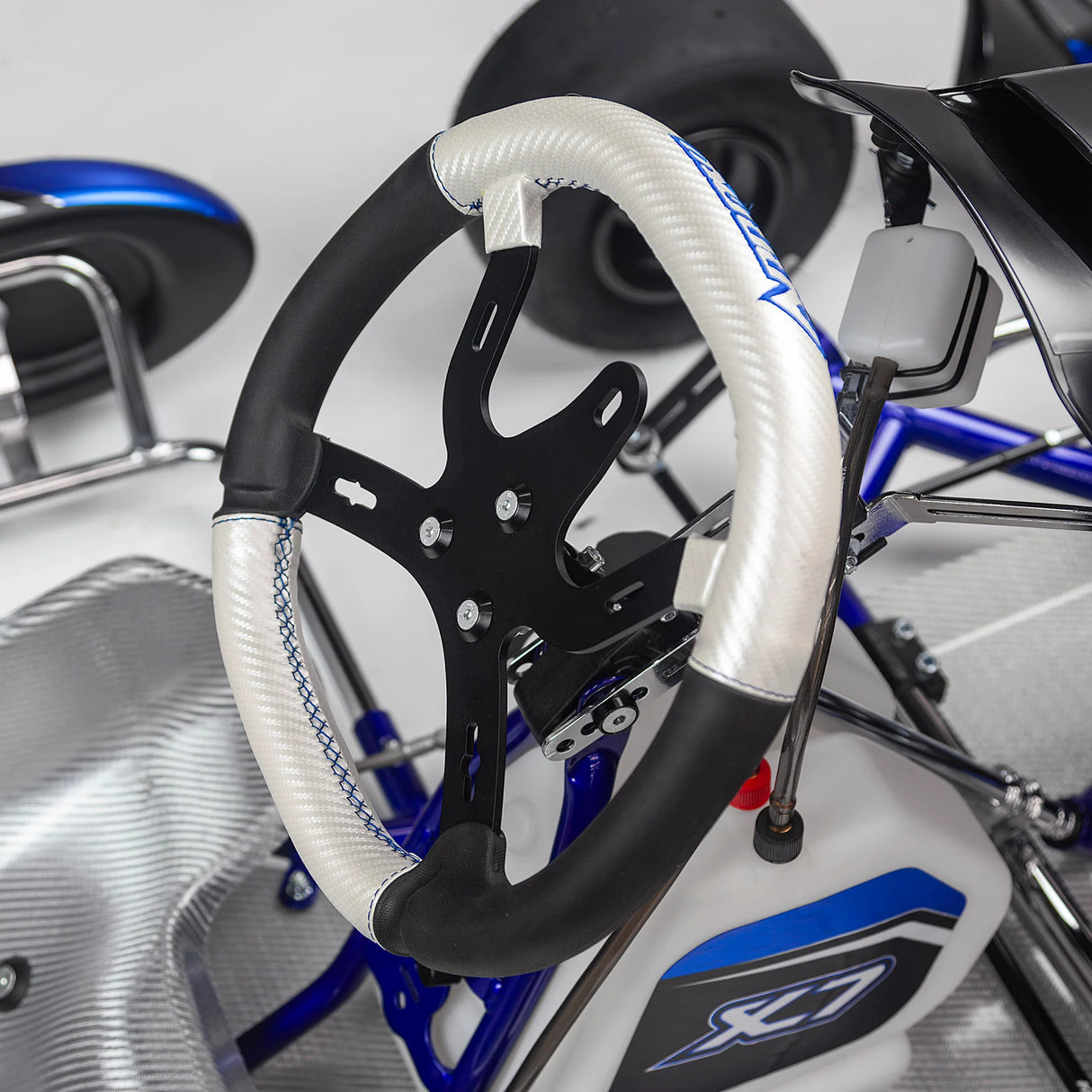

- High grip steering wheel compatible with Alfano & Mychron units
- Jecko Composite Silver Floor Tray

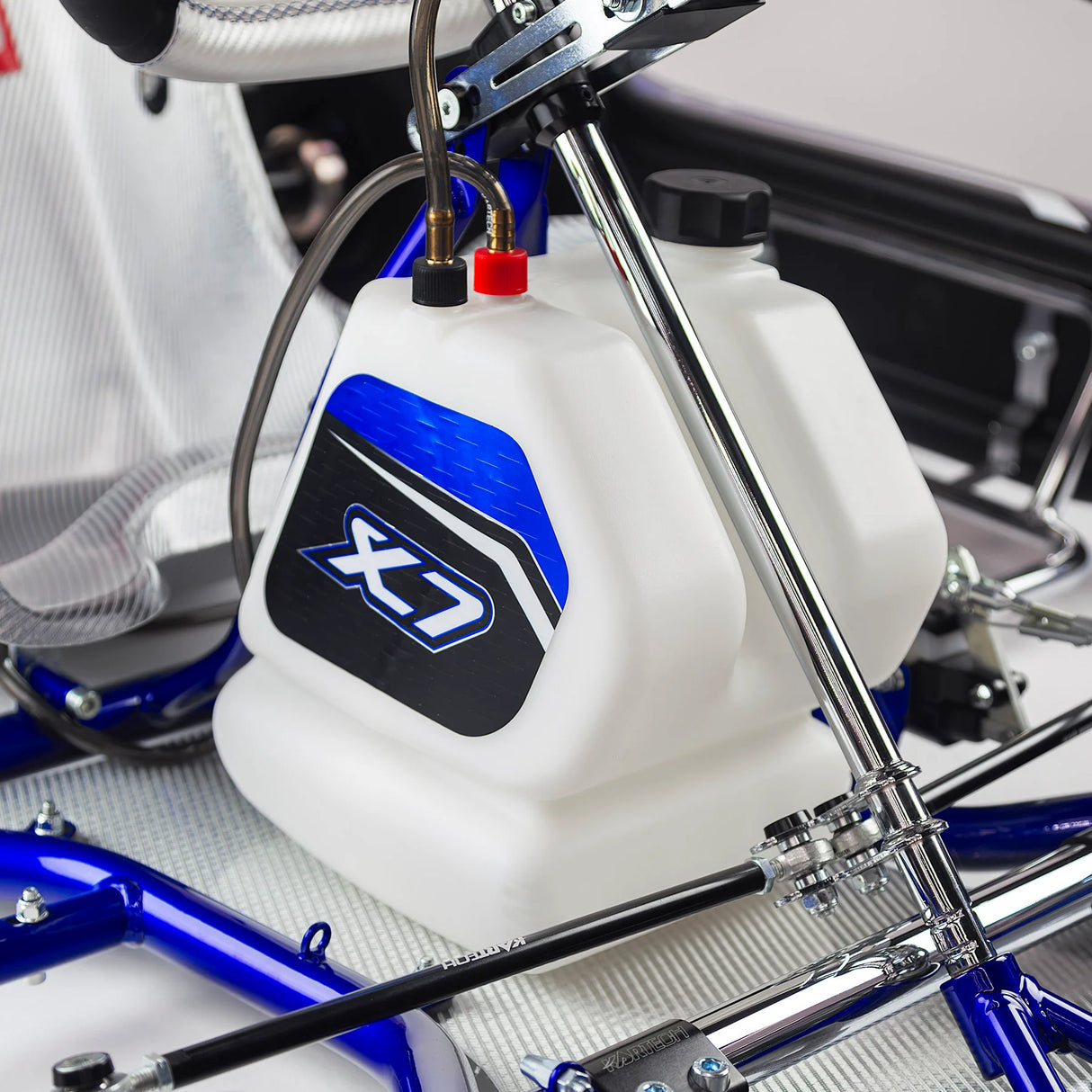

- 8.5L Fuel Tank
- 50mm rear axle with 2 bearings with 90mm magnesium wheel hubs

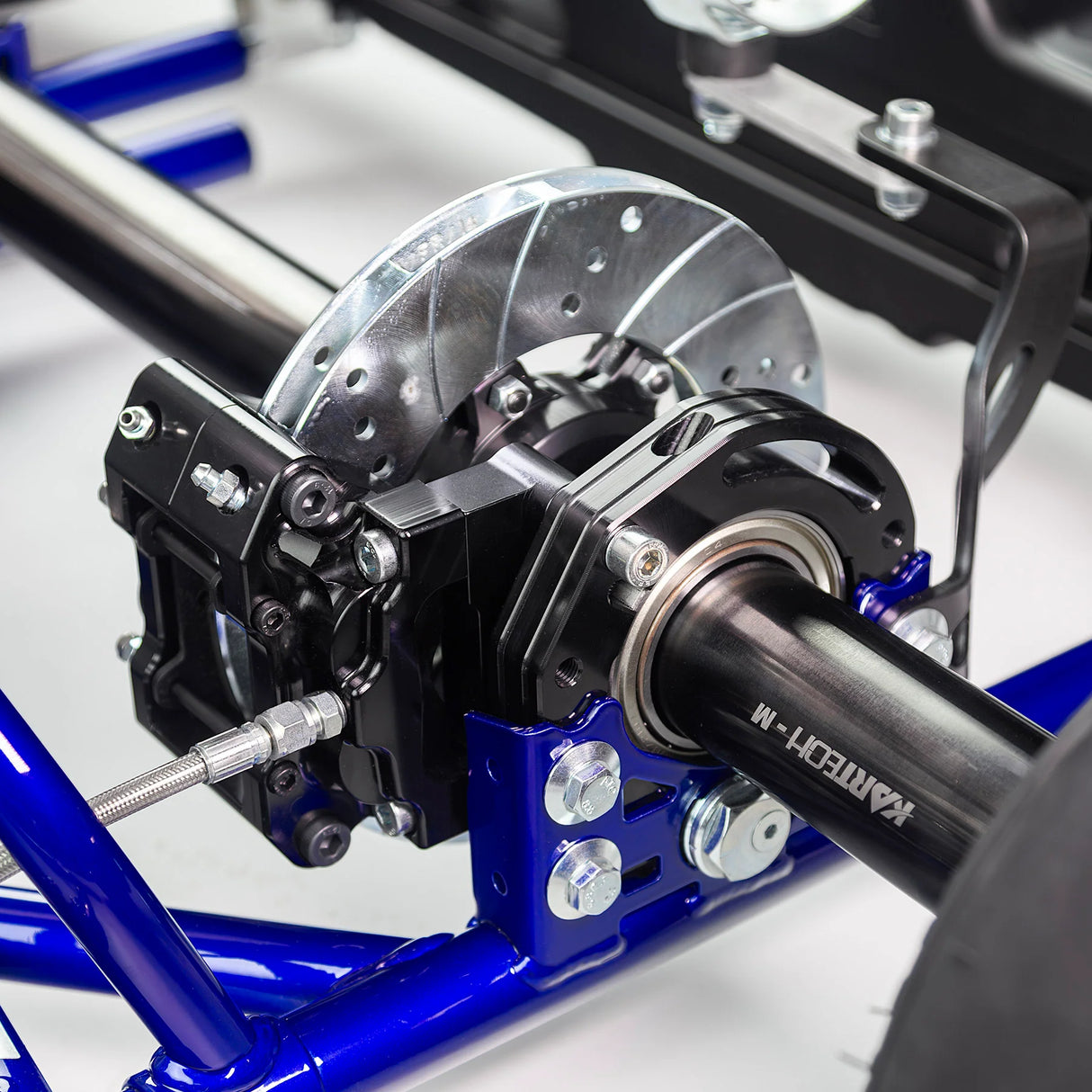

- Self-adjusting radially mounted black anodised billet alloy brake caliper with floating disc
- Adjustable rear ride height

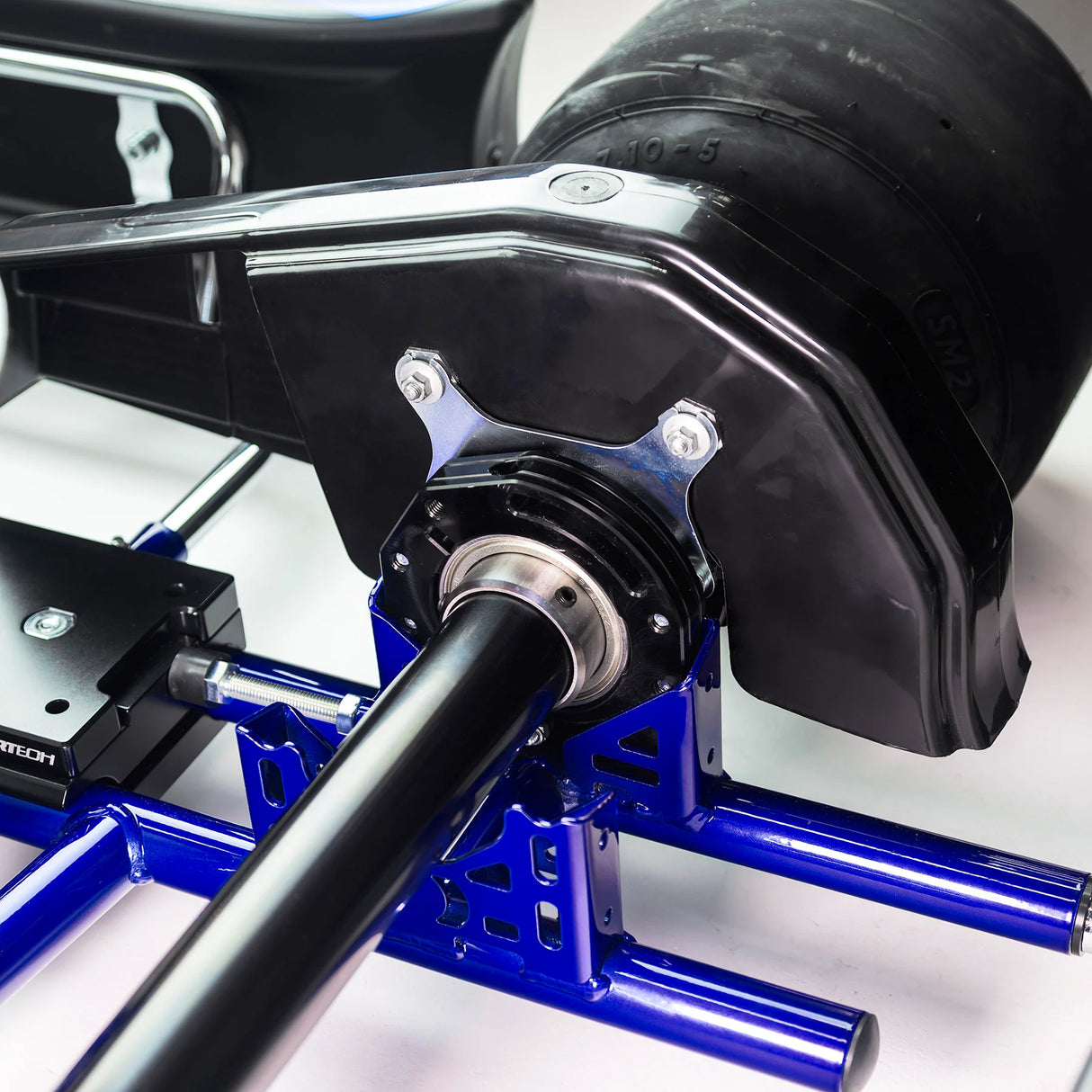

- Enclosed chain guard with Kartech Chain Guard Bracket
- Flat top sliding engine mount system
- 3-piece rear bumper
Kart is a complete rolling chassis. Seat, tyres, engine, exhaust not included. Kart is delivered partially assembled. Seat must be fitted along with bodywork and stickers installed. Engine and exhaust fitment must be performed or arranged by the customer. Tyres should only be fitted by a trained professional.
