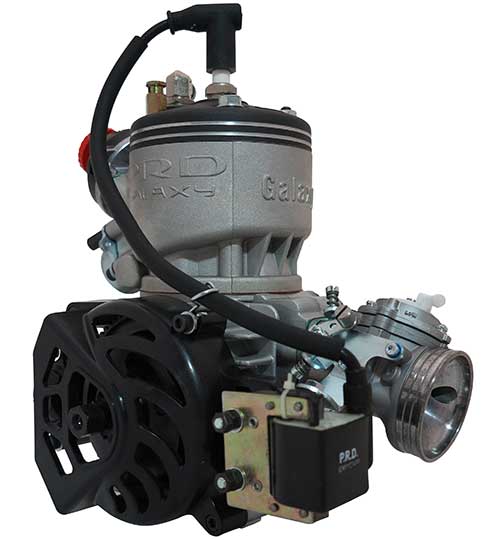

GALAXY 125 W/C ENGINE

The PRD Galaxy is the newest addition to the PRD engine range. The Galaxy is the culmination of years of experience to create an engine package that is fast, easy to operate and utilizes some of the best karting components in the world.

When creating the Galaxy, PRD teamed with two of the world’s best engine component manufacturers. German ignition maker PVL and Swiss carburettor maker Ibea are both renown as the best in their industry. Both these makers have assisted in making what we believe is a very special engine.

The Galaxy features several components which lift the bar in TaG engines. Features include one piece KF Style Exhaust Expansion System, Adjustable Power Valve, PVL Magneto Ignition System, New model centrafugal metal clutch, Increased capacity radiator, Increased dimension main bearings.

On the 01/04/2017 Karting Australia approved the use of the Tillotson HW30A PRD Carburettor for use on the PRD Galaxy. The HW30A carburettor is now supplied as standard equipment with the PRD carburettor. The HW30A carburettor provides the same performance but is easuer to tune.

Specification

Capacity:                       123.15cc (125cc Max)

Bore:                            53.80

Stroke:                         54.00

Piston:                          Aluminium Teflon Coated

Piston Sizes:                  13 Sizes

Ring:                             Dykes

Cooling System:             Water Cooled

Air Admission:               Reed Valve

Head Volume:                11cc

Conrod:                        PRD Fully Machined

Ignition:                        PVL Digital

Carburettor:                  Tillotson HW30A PRD

Exhaust:                        1 Piece Expansion Chamber

Clutch:                          Centrifugal Metal Clutch

Radiator:                       Billet Aluminium

Airbox:                          PRD Front Inlet
